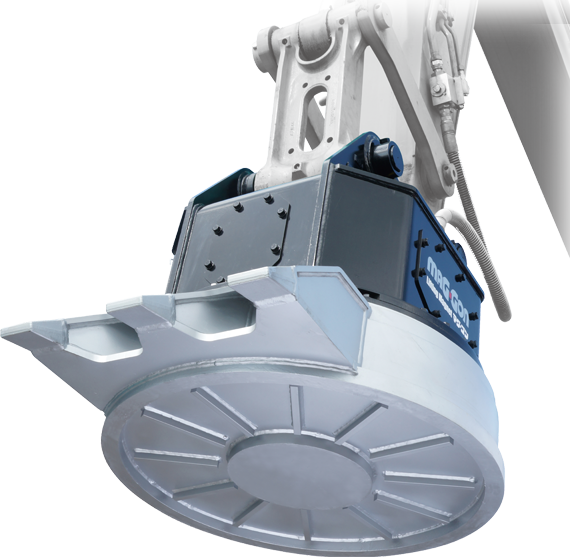

Best for collection, loading and unloading of steel frames.
It can do great jobs in loading and unloading work on scrap sites and collecting of scrap and rebars on demolition sites. No electrical wire routing is necessary, only ducts for breakers. Easy manipulation of the hydraulic shovel for grip and release can be done by foot pedal.
| Class of excavator |
20-22ton【GM-200】
|
|---|---|
| Other class |
4~5ton 【GM-40】 6~8ton 【GM-60】 12~14ton 【GM-120】 20-22ton 【GM-200】 |
| Use Hydraulic | 20.6MPa |
| Mass | 1800kg |
| Required Flow Rate | 54L/min |
| Size |
A:930mm Full HeightB:1370mm Dimension C:750mm Claw width D:φ1100mm Magnet Diameter |
| Duty Cycle | 60%ED |
| Power Consumption | 9.3kW |
| Max. Lifting Mass | Pig Iron900kg, Steel Cut Wastes500kg, Cut Wastes300kg |
