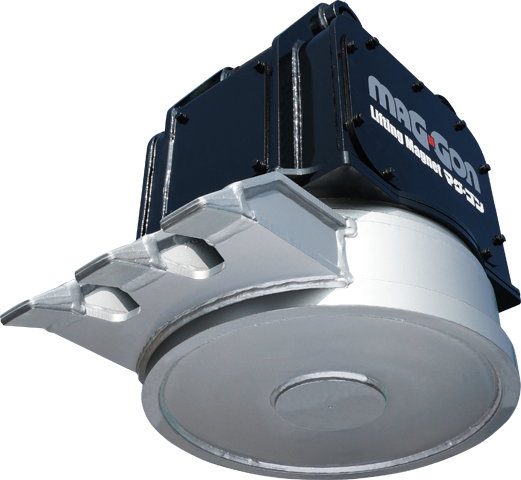

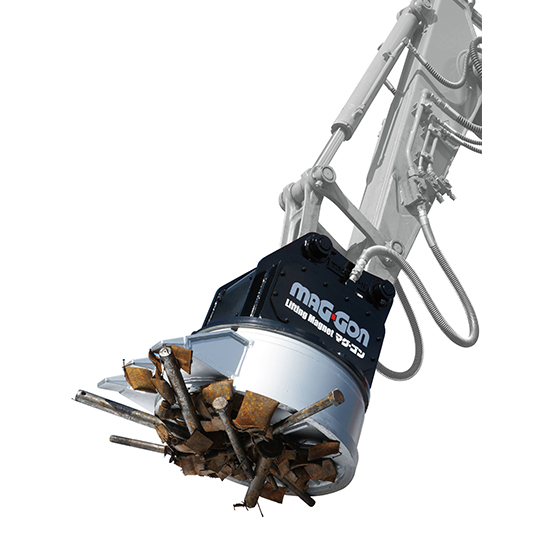

Best for collection, loading and unloading of steel frames.

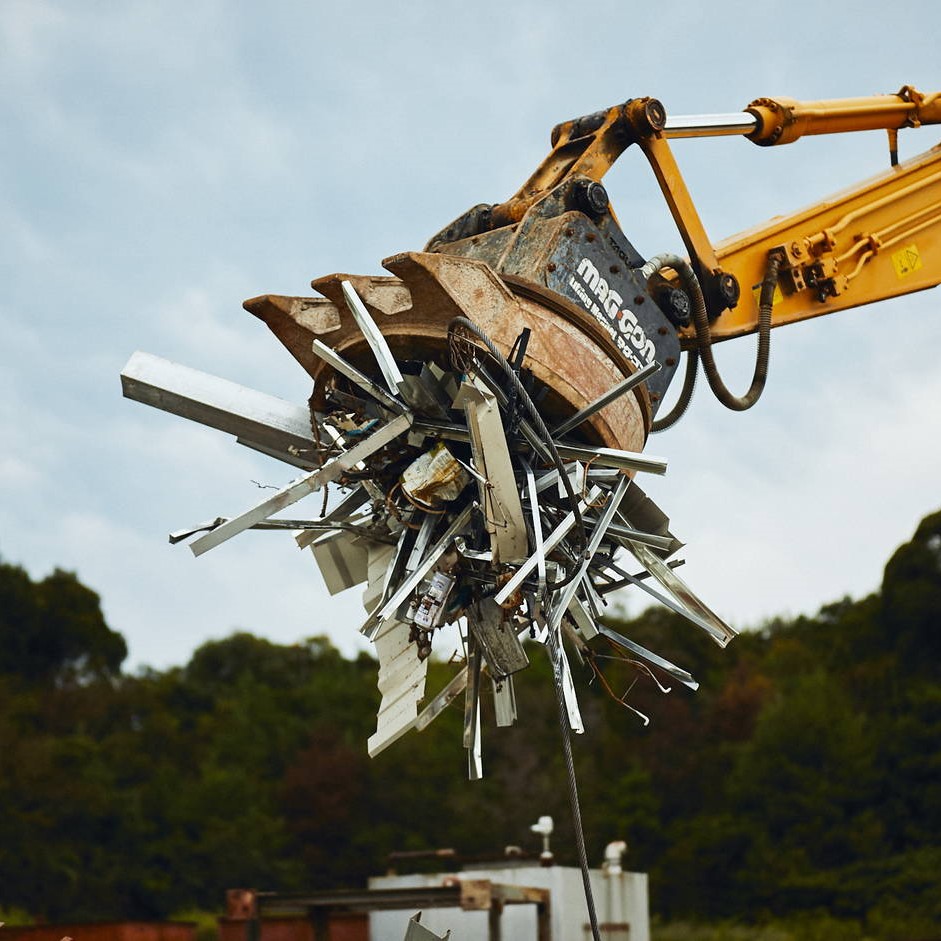

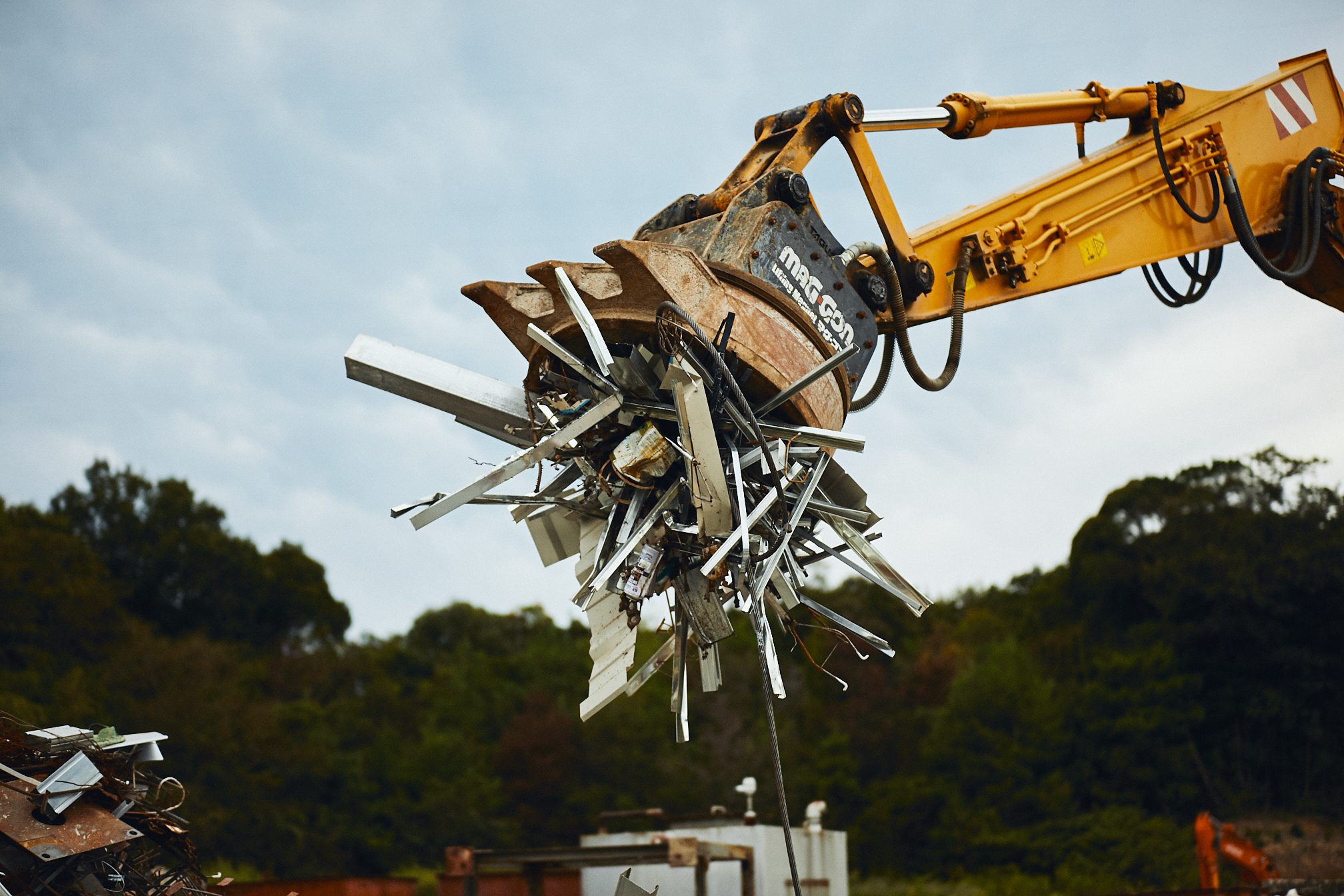

It can do great jobs in loading and unloading work on scrap sites and collecting of scrap and rebars on demolition sites. No electrical wire routing is necessary, only ducts for breakers. Easy manipulation of the hydraulic shovel for grip and release can be done by foot pedal.
| Class of excavator |
4~5ton【GM-40】
|
|---|---|
| Other class |
4~5ton 【GM-40】 6~8ton 【GM-60】 12~14ton 【GM-120】 20-22ton 【GM-200】 |
| Use Hydraulic | 14.7MPa |
| Mass | 380kg |
| Required Flow Rate | 19L/min |

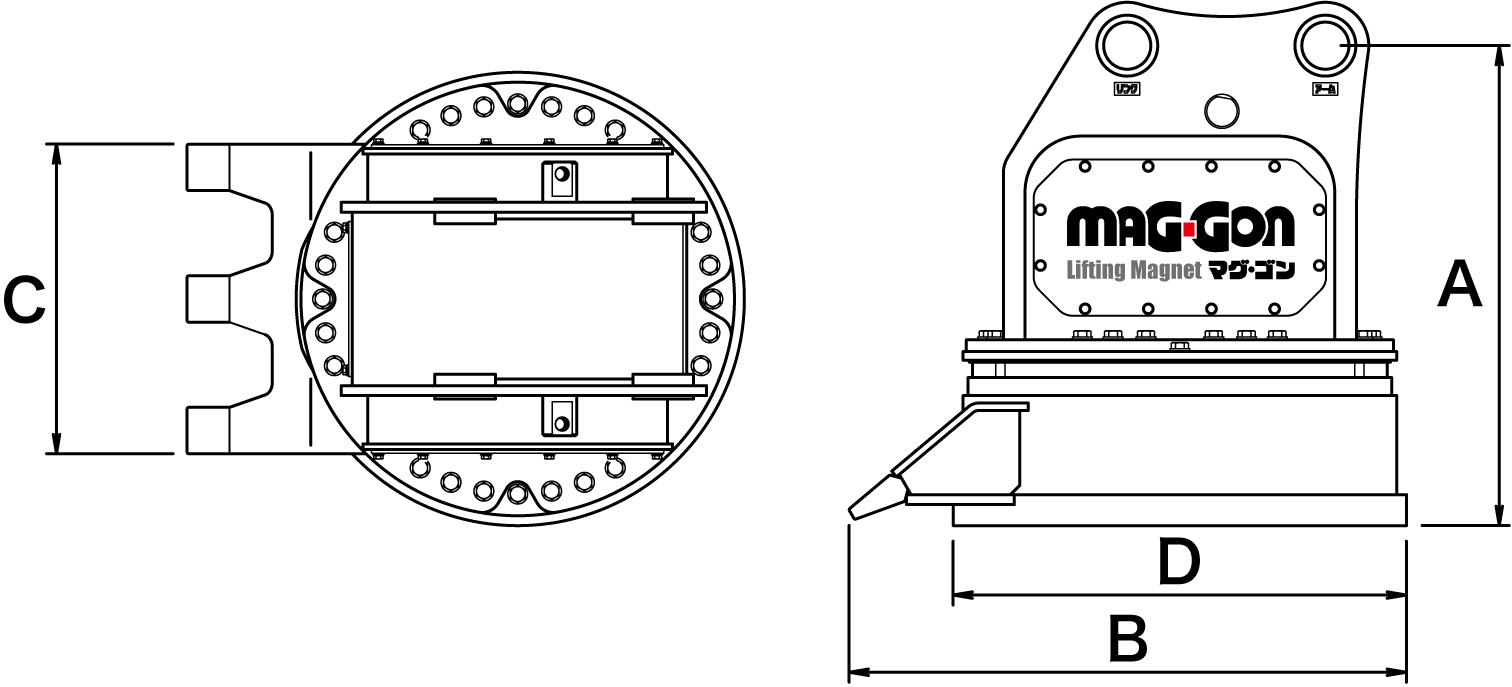

| Size |
A:630mm Full HeightB:695mm Dimension C:360mm Claw width D:φ500mm Magnet Diameter |
| Duty Cycle | 60%ED |
| Power Consumption | 1.0kW |
| Max. Lifting Mass | Pig Iron120kg, Steel Cut Wastes90kg, Cut Wastes25kg |
Search for the other series
