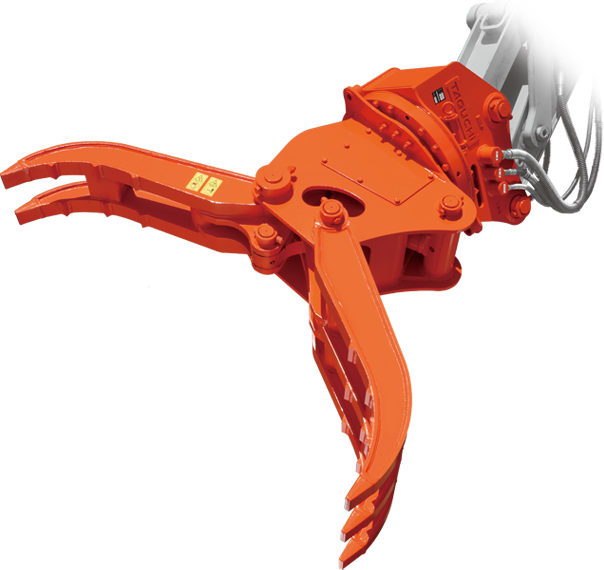

A high-efficiency gripping machine featuring head-swing and 360-degree swivel.
It shows its power as a material handling machine. It can also execute stacking operation of long objects without paying special attention to working posture. Gripping operation is done by one foot pedal and swivel operation by other foot pedal. An automatic type first adopted for graspers was also newly released!
| Class of excavator |
12~14ton【GV-120S】
Equipment Adapter parts |
|---|---|
| Other class |
1.2~3ton 【GV-15S】 3~4ton 【GV-32S】 4~5ton 【GV-40S】 6~8ton 【GV-60S】 12~14ton 【GV-120S】 20~22ton 【GV-202S】 22~25ton 【GV-250S】 30~37ton 【GV-300S】 40~45ton 【GV-400S】 |
| Maximum working pressure | 34.3MPa |
| Mass | 870kg |
| Size |
A:1860mm Max openingB:1880mm Body length C:560mm Craw width D:1030mm Craw length |
