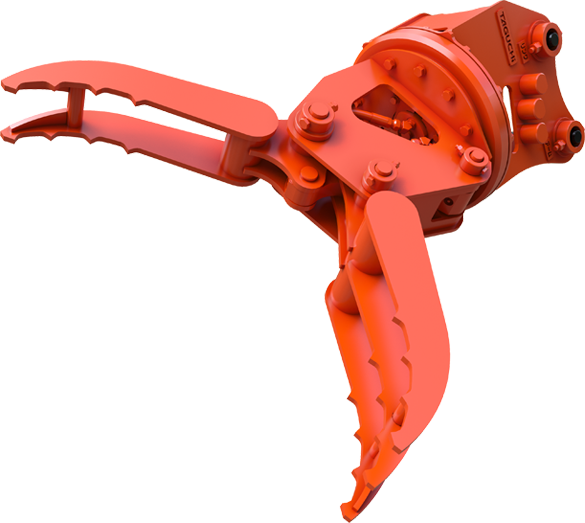

A high-efficiency gripping machine featuring head-swing and 360-degree swivel.
It shows its power as a material handling machine. It can also execute stacking operation of long objects without paying special attention to working posture. Gripping operation is done by one foot pedal and swivel operation by other foot pedal. An automatic type first adopted for graspers was also newly released!
| Class of excavator |
1.2~3ton【GV-15S】
Equipment Adapter parts |
|---|---|
| Other class |
1.2~3ton 【GV-15S】 3~4ton 【GV-32S】 4~5ton 【GV-40S】 6~8ton 【GV-60S】 12~14ton 【GV-120S】 20~22ton 【GV-202S】 22~25ton 【GV-250S】 30~37ton 【GV-300S】 40~45ton 【GV-400S】 |
| Maximum working pressure | 24.5MPa |
| Mass | 110kg |

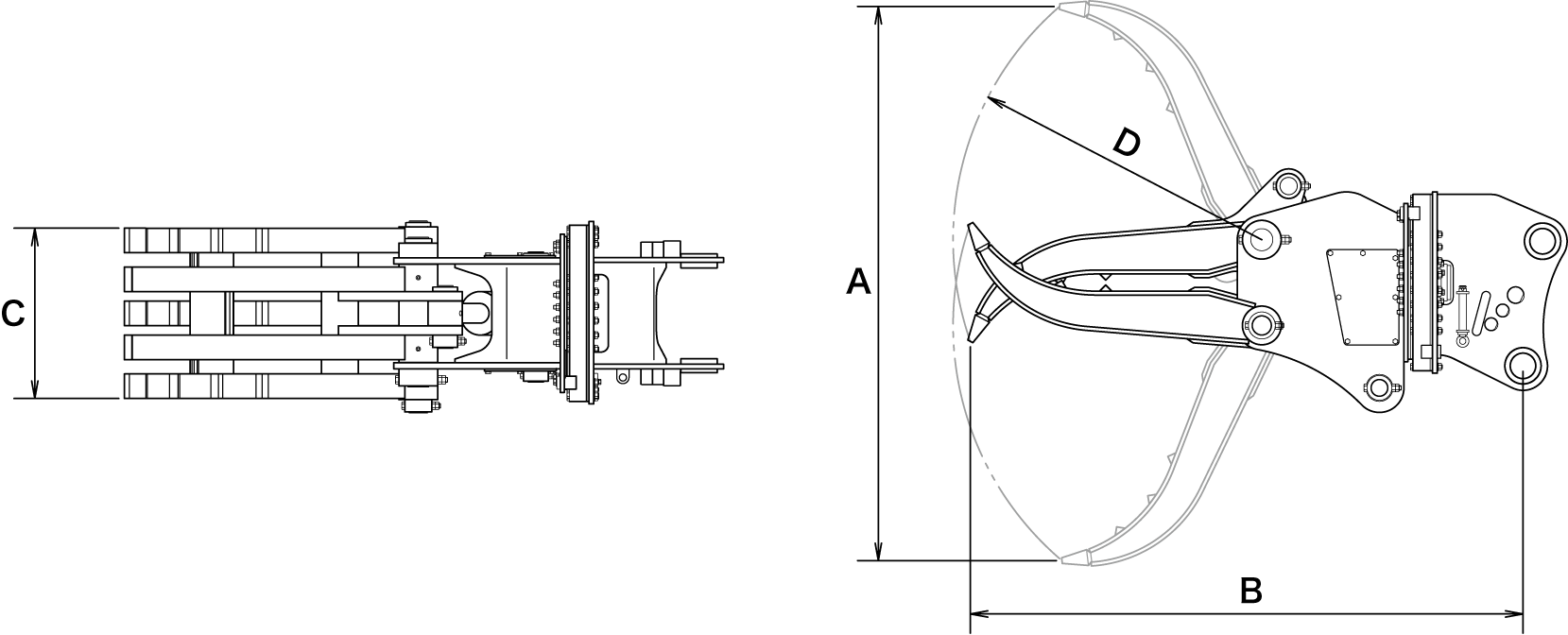

| Size |
A:820mm Max openingB:1010mm Body length C:250mm Craw width D:500mm Craw length |
Search for the other series
