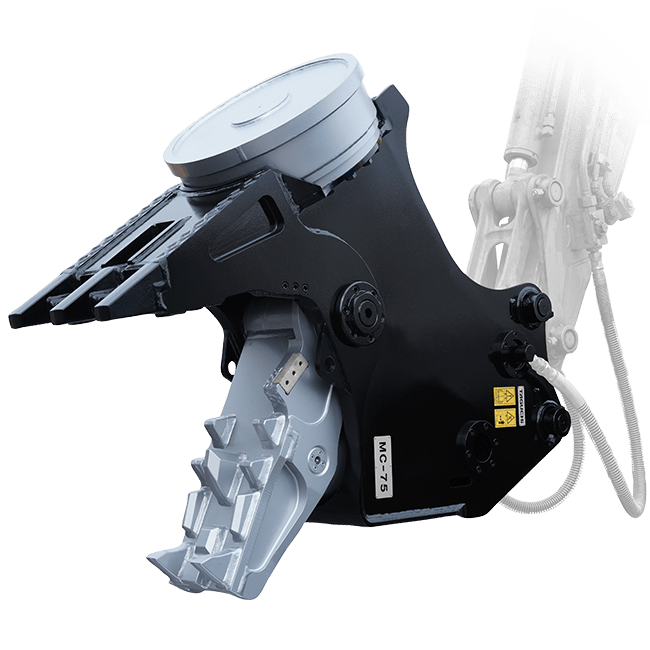

2 different functions with only 2 piping lines!
Features ①Generates magnetic force without electric wiring work. ②Equipped with release function. ③Excellent crushing power with one original cylinder.
| Class of excavator |
6-8ton【MC-76DM5】 |
|---|---|
| Other class |
6-8ton 【MC-76DM5】 12~14ton 【MC-135BDM5】 20~22ton 【MC-202BDM7】 30~37ton 【MC-352BDM7】 30~37ton 【MC-351DM9】 |
| Working pressure | 24.5MPa |
| Maximum working pressure | 27.4MPa |
| Mass |
[A]910kg |
| Size |
A:1390mmB:600mm Max opening C:100mm Cutter length |
| Tip crushing force | D:382kN |
|
Central crushing force |
E:598kN |
| Magnet diameter | F:φ500mm |
| Magnet working rate | 60%ED |
| Magnet electric consumption | 1.0kW |
| Maximum adsorption weight | Pig iron120kg, steel chips90kg, chips25kg |
