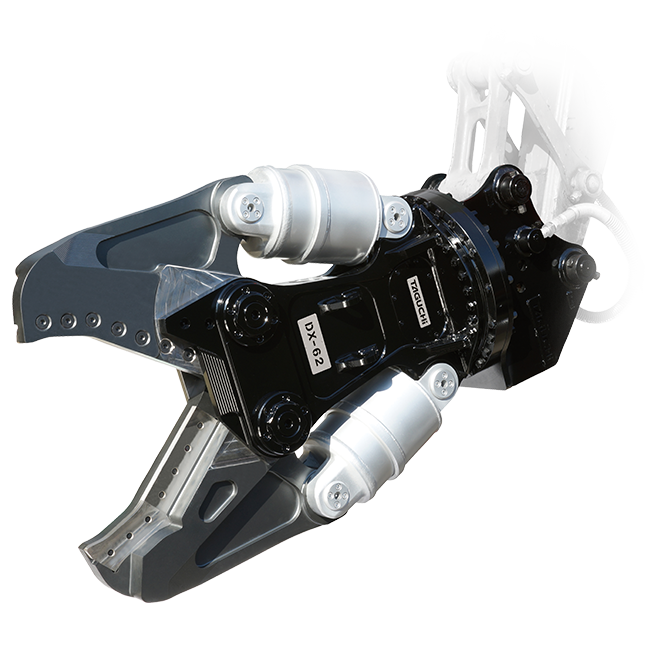

We realized the industry top-class cutting power and lightweight.
An extraordinary cutting power, which can cut and crush steel-frame and reinforced-steel-rod concrete constructions delivers excellent work efficiency in any demolition site. This is Taguchi's representative cutter series.The lineup includes automatic swivel type (A) ,hydraulic swivel type (S) and new swivel type hydraulic/automatic swivel type (AS).
| Class of excavator |
6~8ton【DX-62】
|
|---|---|
| Other class |
3~4ton 【DX-32】 4～5ton 【DX-42】 6～8ton 【DX-62】 12～14ton 【DX-132】 20～22ton 【DX-202】 30～37ton 【DX-302】 40～45ton 【DX-402】 |
| Maximum working pressure | 27.4MPa |
| Mass | 820kg |
| Size |
A:1540mmB: 505mm Max opening C: -120mm Minimum Opening width D: 260+175mm Cutter length（bottom side + tip side） |
| Tip crushing force | E:431kN |
|
Central cutting force |
F:627kN |
Search for the other series
