DX Cutter

SRC (Steel Reinforced Concrete) cutter

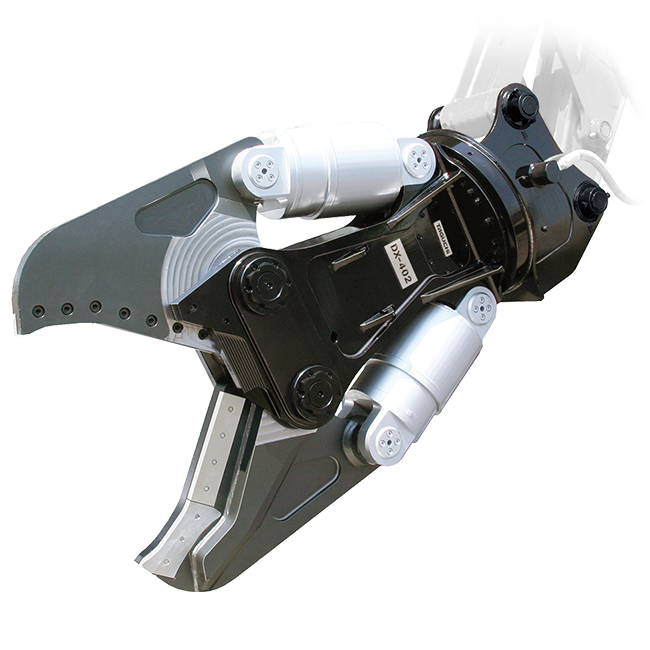

DX Cutter

CUTTER&CRUSHER

We realized the industry top-class cutting power and lightweight.

An extraordinary cutting power, which can cut and crush steel-frame and reinforced-steel-rod concrete constructions delivers excellent work efficiency in any demolition site. This is Taguchi's representative cutter series.The lineup includes automatic swivel type (A) ,hydraulic swivel type (S) and new swivel type hydraulic/automatic swivel type (AS).

Class of excavator

40~45ton【DX-402】


[S]Hydraulic swivel    [A]Automatic swivel

Other class 3~4ton
【DX-32】
4~5ton
【DX-42】
6~8ton
【DX-62】
12~14ton
【DX-132】
20~22ton
【DX-202】
30~37ton
【DX-302】
40~45ton
【DX-402】
Maximum working pressure 31.4MPa
Mass 4640kg
Size A: 2740mm
B: 1100mm Max opening
C: -260mm Minimum Opening width
D: 500+345mm Cutter length(bottom side + tip side)
Tip crushing force E:1338kN
Central cutting
force
F:2000kN
