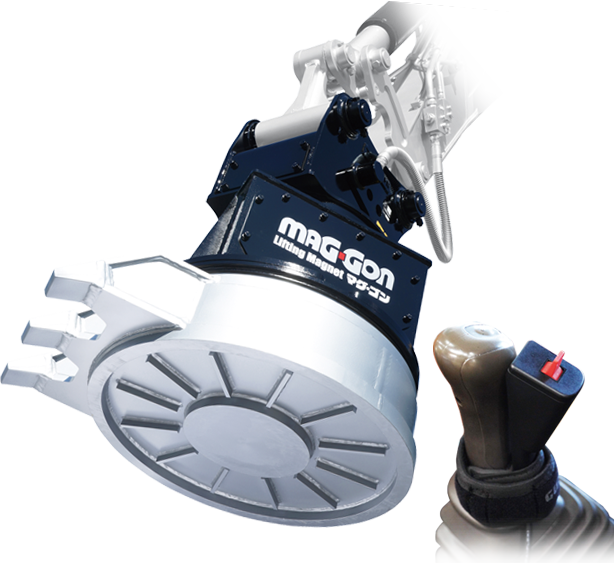

Total swivel magnet which turns 360 degree without electric wiring or extra piping.
A new model of "Mag・Gon" that can use a powerful magnet without electric wiring. In the "DYNA series" that works by remote control, magnets not only adsorb but also swivel with only 1 line hydraulic piping. By operating the turning switch attached to the cabin, swiveling to the left and the right are possible just by the remote control. Reinforcing bar collection work at the dismantling site and loading/unloading work at the scrap processing site are dramatically improved.
| Class of excavator |
12~14ton【GM-120SD】
|
|---|---|
| Other class |
12~14ton 【GM-120SD】 20~22ton 【GM-200SD】 |
| Use Hydraulic | 20.6MPa |
| Mass | 1210kg |

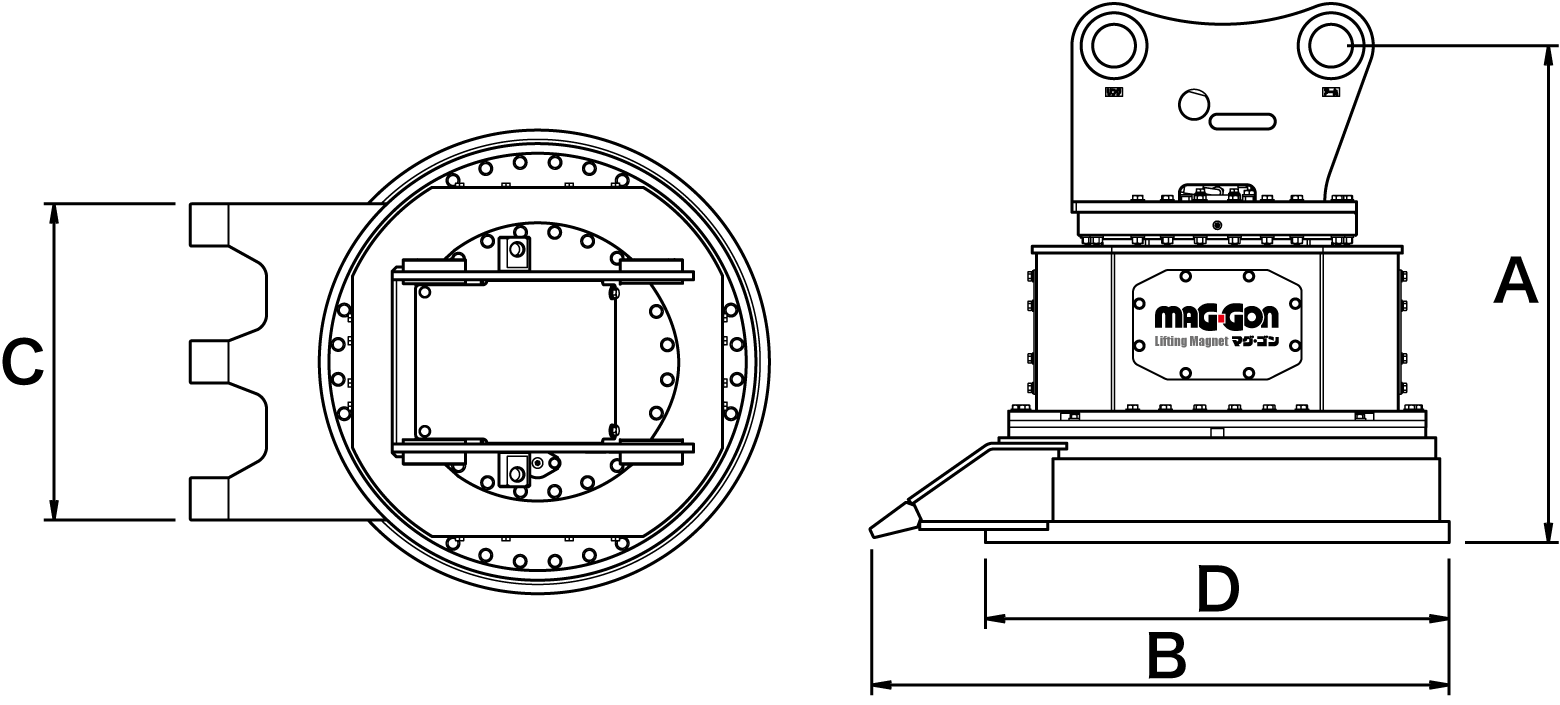

| Size |
A:1060mm Full HeightB:1100mm Dimension C:620mm Claw width D:φ900mm Magnet Diameter |
| Duty Cycle | 60%ED（cycle period; turn electricity 6min. off 4min.） |
| Power Consumption | 6.2kW |
| Max. Lifting Mass | Pig Iron500kg, Steel Cut Wastes300kg, Cut Wastes200kg |
