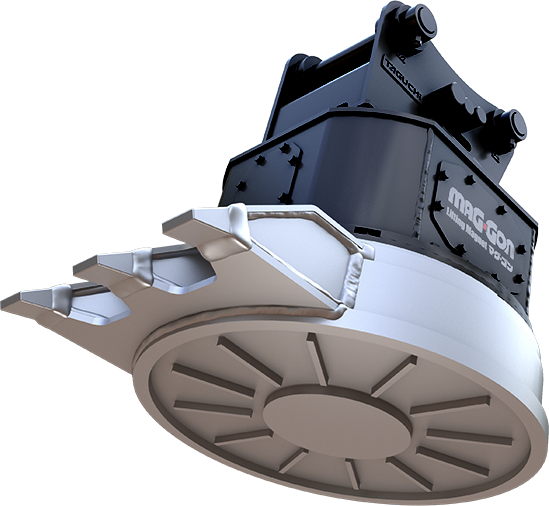

Magnet swivels without wiring!
Fully swiveling type is now available in the hydraulic power generation magnet "MAG・GON" that works immediately without electrical wiring! Since the magnet part swivels, you can freely change the orientation of long rebars. Work efficiency of scrap/rebar collection work at the dismantling site and loading/unloading work at the scrap processing site is further improved. Easy to pick up and release.
| Class of excavator |
20~22ton【GM-200S】
|
|---|---|
| Other class |
6~8ton 【GM-60S】 12~14ton 【GM-120S(φ700)】 12~14ton 【GM-120S(φ900)】 20~22ton 【GM-200S】 |
| Use Hydraulic | 20.6MPa |
| Mass | 2040kg |
| Required flow rate | 54L/min |
| Size |
A:1180mm Full HeightB:1370mm Dimension C:750mm Claw width D:φ1100mm Magnet Diameter |
| Duty Cycle | 60%ED（cycle period; turn electricity 6min. off 4min.） |
| Power Consumption | 9.3kW |
| Max. Lifting Mass | Pig Iron900kg, Steel Cut Wastes500kg, Cut Wastes300kg |
