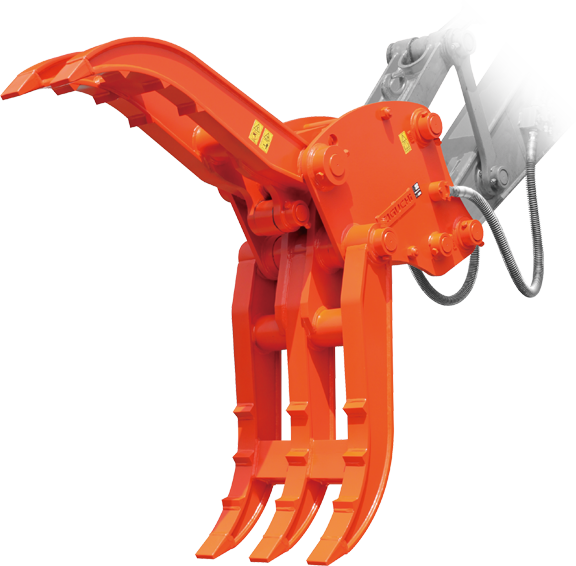

A large freedom of gripping angle is realized due to head-swing manipulation.
It can operate from any angle, enabling operation on sites where fix-type machine operation is difficult. Manipulation can be done as for an usual bucket, as claw movement is done by a hydraulic cylinder within the main body. Part change time is greatly reduced due to easy removal by only 2 pins.
| Class of excavator |
0.7~1.5ton【GV-08L】
Equipment Adapter parts |
|---|---|
| Other class |
0.7~1.5ton 【GV-08L】 1.2~3ton 【GV-17L】 3~4ton 【GV-32L】 4～5ton 【GV-40L】 6～8ton 【GV-60L】 12~14ton 【GV-120L】 20~22ton 【GV-202L】 30~37ton 【GV-300L】 40~45ton 【GV-402L】 |
| Maximum working pressure | 20.6MPa |
| Mass | 65kg |

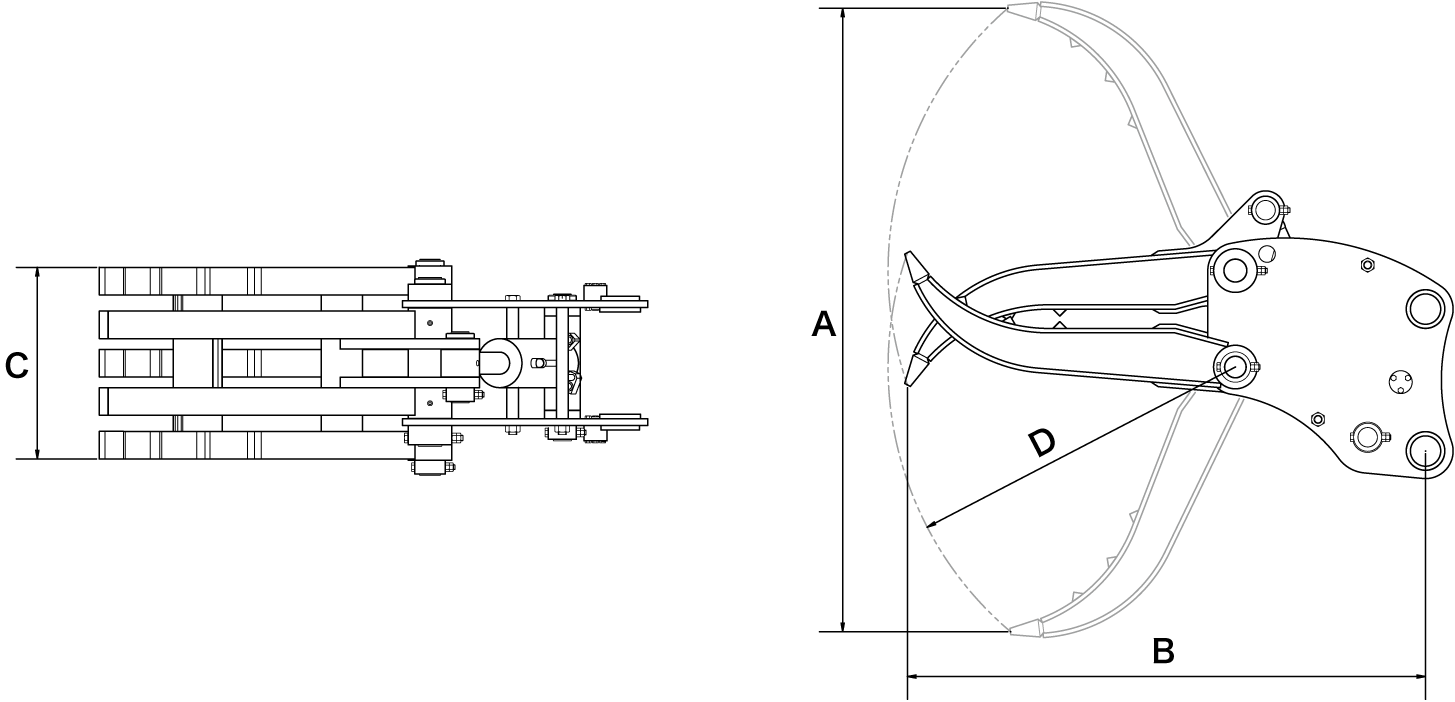

| Size |
A:770mm Max openingB:725mm Body length C:230mm Craw width D:440mm Craw length |
Search for the other series
