The industry 's first fully sealed , achieve a strong embrace .
Strong embrace , firmly grasp increase of the features . The fully sealed design , to prevent the failure or damage to the cylinder and the hose by the end material and the like at the time of scrap work . (Photo Orange type)
| Class of excavator |
20~22ton
Equipment Adapter parts |
|---|---|
| Other class |
20~22ton 【ARG-2300-202-20】 22~25ton 【ARG-2300-250-20】 22~25ton 【ARG-2300-250-30】 30~37ton 【ARG-2600】 30~37ton 【ARG-2900】 20~22ton 【ARP-2300-202-20】 22~25ton 【ARP-2300-250-20】 22~25ton 【ARP-2300-250-30】 30~37ton 【ARP-2600】 30~37ton 【ARP-2900】 |
| Maximum working pressure |
34.3MPa |
| Mass |
1830kg |
| Size |

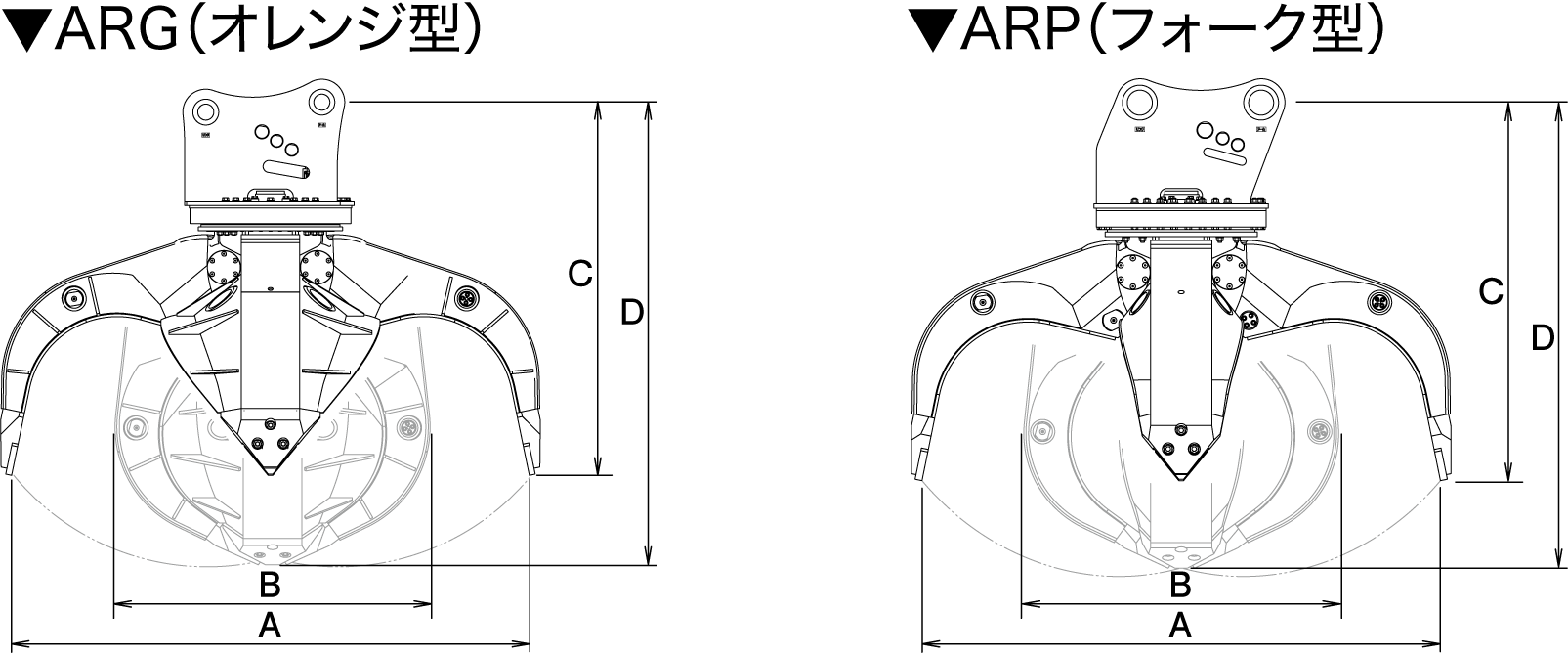

A:2300mm Max openingB:1340mm Full width C:1630mm Height( opened ) D:2010mm Height( closed ) |
Search for the other series
