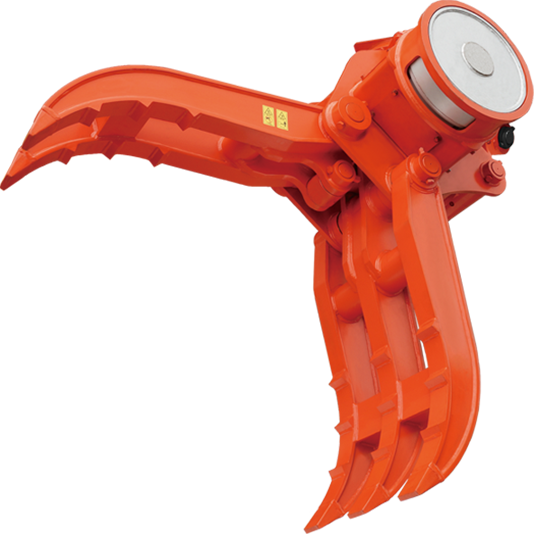

Equipped with a convenient hydraulic power generation magnet on Grasper.
TAGUCHI product "Grasper", which boasts the top share of gripping machine, and hydraulic power generation magnet "MAG・GON" are combined. Lineup includes a head-swing type with a magnet on the tip of the toe and a full swivel type attached to the side of the swing frame. Since it is equipped with a hydraulic power generation magnet, there is no need for electric wiring to the hydraulic excavator, and the base machine is not limited.
| Class of excavator |
20~22ton
|
|---|---|
| Other class |
20~22ton 【GV-202LDM5A】 20~22ton 【GV-202SDM5A】 |
| Maximum working pressure | 34.3MPa |
| Recommended flow rate | 200L/min |
| Mass | 1940kg |
| Size |
A:2260mm Max openingB:2260mm Body length C:1260mm Craw length 695mm Craw width |
| Magnet diameter | φ500mm |
| Magnet working rate | 60%ED（cycle period; turn electricity 6min. off 4min.） |
| Magnet electric consumption | 1.0kw |
| Max.lifting mass | Pig iron120kg, steel cutting waste90kg, cutting waste25kg |
