TH Twin Drum Cutter Heads

Asphalt & concrete cutting machine

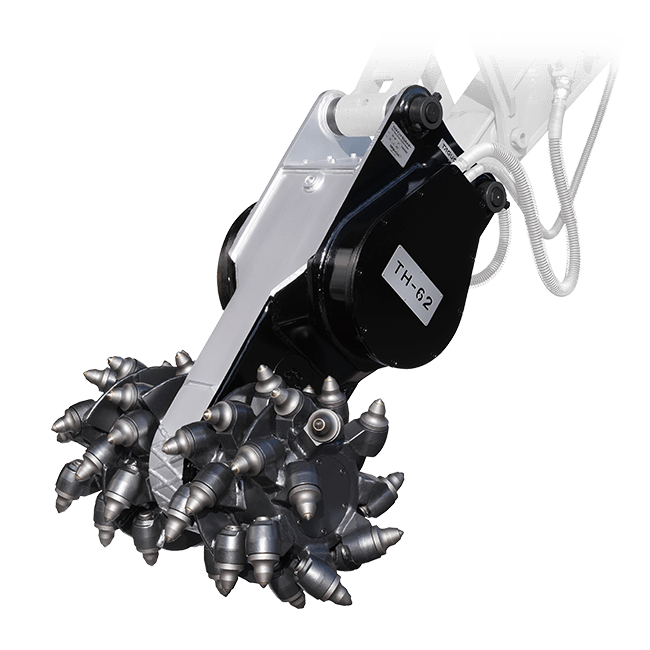

TH Twin Drum Cutter Heads

CUTTER&CRUSHER

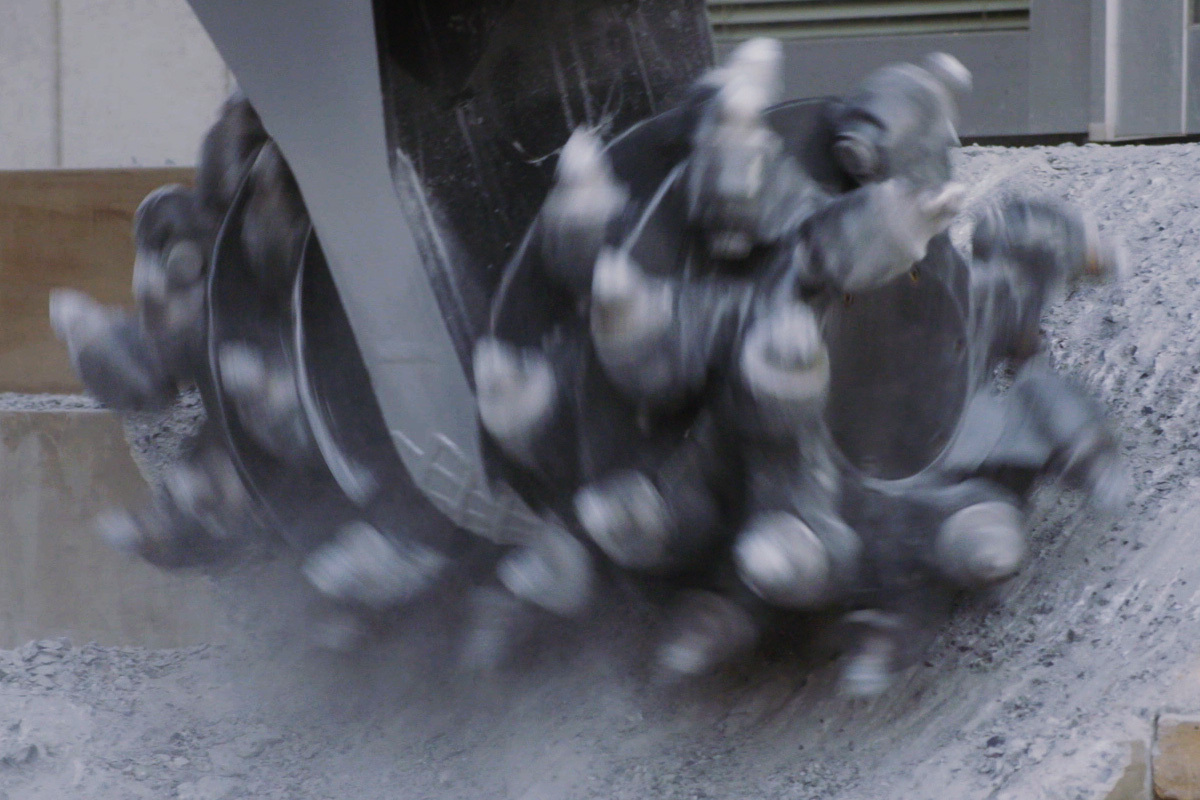

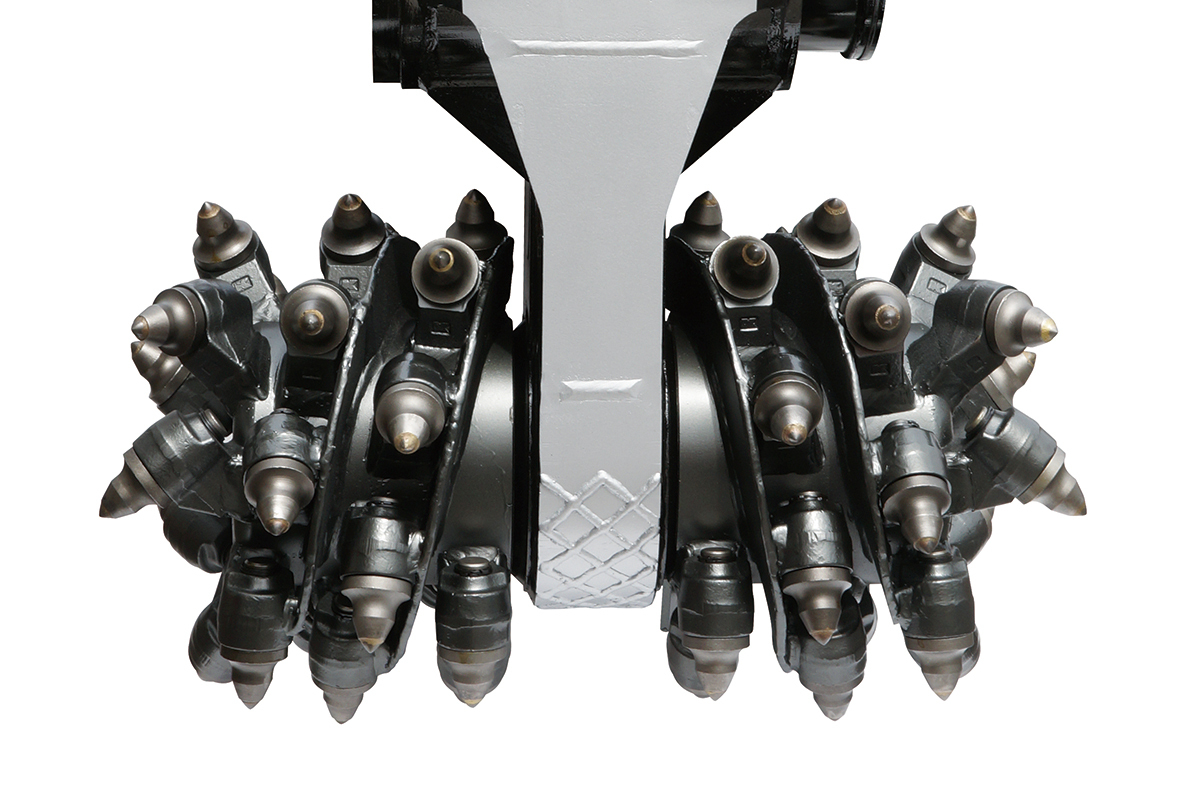

Powerfully processes cutting work by its dual drums.

Speedy and powerful processing of excavation and cutting work on multi-purpose sites. It is easy to handle and offers an excellent visibility. Due to the adoption of bit-cutting system, it has a higher cost-performance and makes less noise in comparison with breaking machines. It can be used by combining 2 pumps.

Class of excavator

6~8ton【TH-60】



Equipment

Adapter parts
Other class 6~8ton
【TH-60】
12~14ton
【TH-120】
20~22ton
【TH-200】
Maximum working pressure 27.4MPa
Mass 760kg

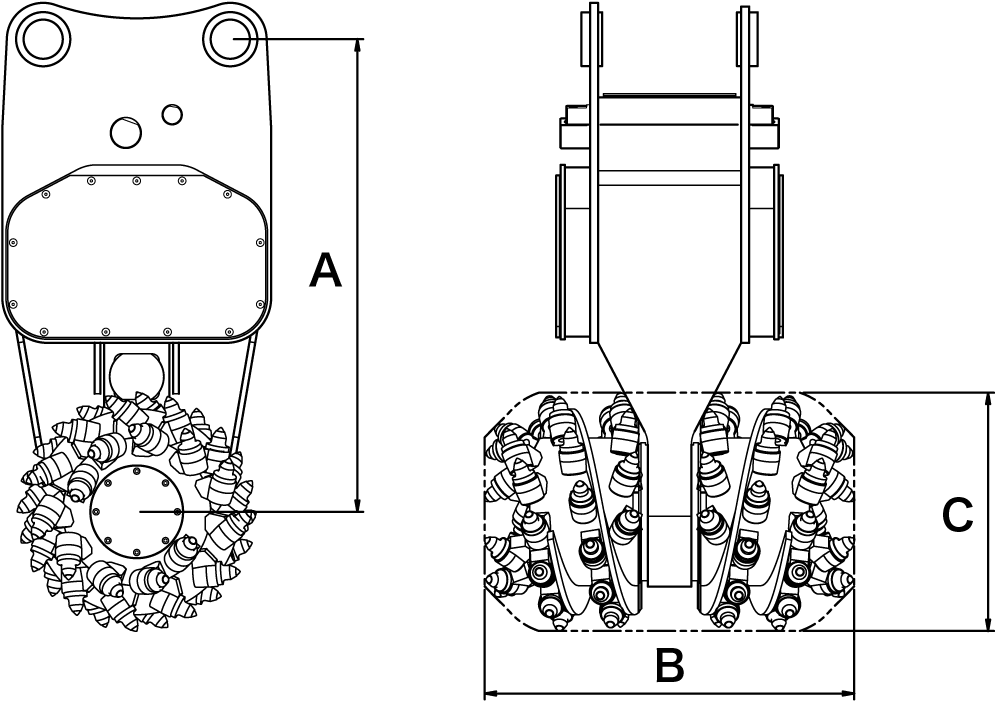

Size A:970mm
B:925mm Drum width
C:φ505mm Drum outside diameter
Rotational speed 81rpm ( 120L/min )
Maximum output torque 5840N-m
Cutting force 23kN

Search for the other series
