MP/MFP Crushing Cutter

Iron framework cutter & Reinforced concrete crusher
MP/MFP Crushing Cutter

CUTTER&CRUSHER

Single cylinder cutter for easy maintenance

TAGUCHI's simple shape makes maintenance easier. Demonstrates its power in the demolition of reinforced concrete structures and rebar/steel frame structures.The MFP type is equipped with primary crushing tooth and can be used for both cutting and primary crushing work.

Class of excavator

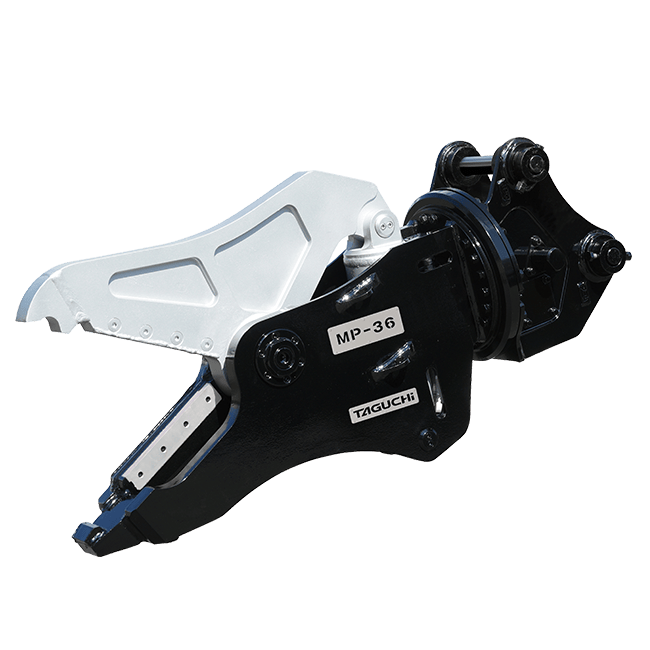

3~5ton【MP-35B】


[S]Hydraulic swivel    [A]Automatic swivel

Other class 3~5ton
【MP-35B】
6~8ton

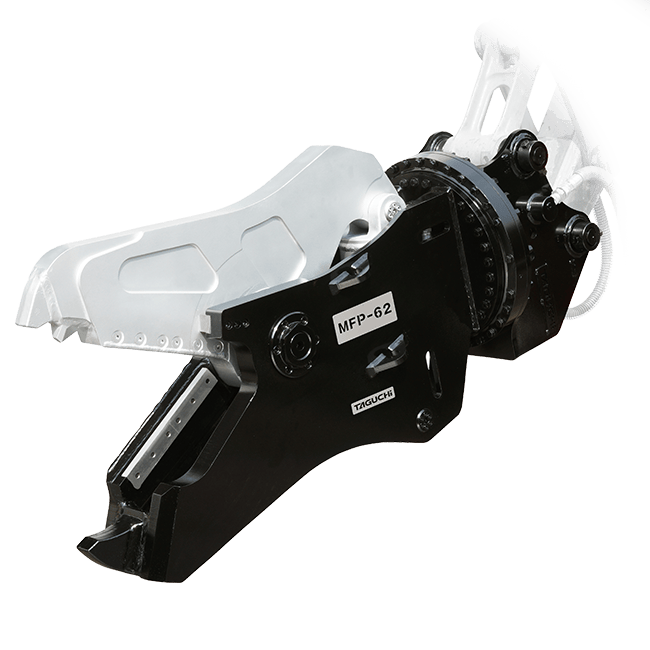

【MFP-62B】
12~14ton
【MFP-122B】
Working pressure 24.5MPa
Maximum working pressure -
Mass [S]240kg
[A]240kg
Size A:1200mm
B:415mm Max opening
C:240mm Cutter length
Tip crushing force D:157kN
Central cutting
force
E:336kN

Search for the other series
