A new lineup of the strongest Pulverizers!
Large cylinders and acceleration valves speed-up Jaw movement and enhance crushing efficiency. Operator stress is lightened due to lower vibration and noise. Separate collection of refuse is easier, due to special steel rod cutters and Jaw shaped for easy gripping of steel rods.
| Class of excavator |
3~5ton【MC-35B】 |
|---|---|
| Other class |
3~5ton 【MC-35B】 6~8ton 【MC-75B】 12~14ton 【MC-135B】 20~22ton 【MC-201】 30~37ton 【MC-301】 40~45ton 【MC-452】 |
| Working pressure | 24.5MPa |
| Maximum working pressure | 24.5MPa |
| Mass | 240kg |

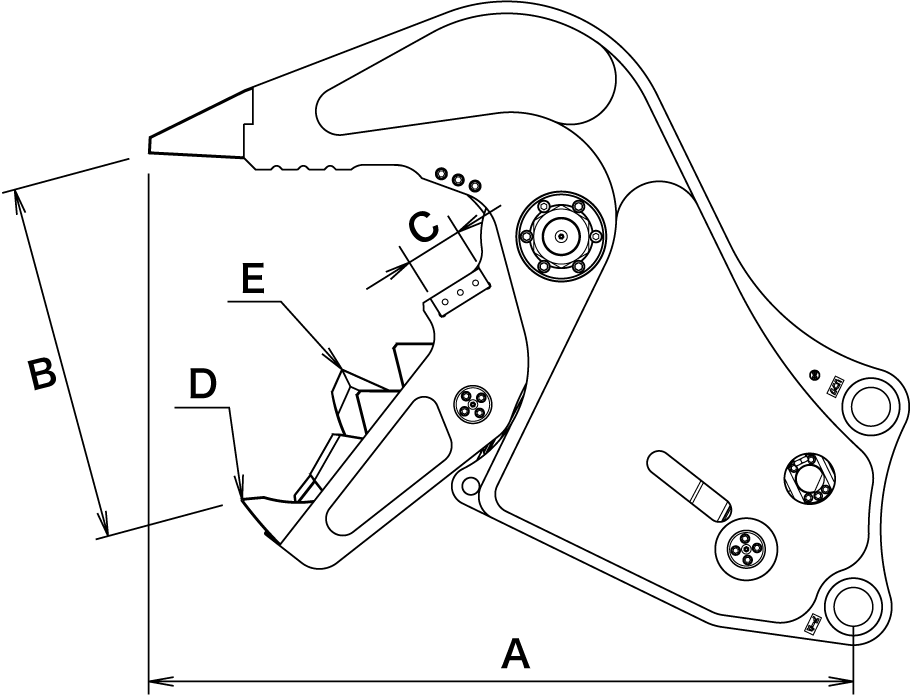

| Size |
A:950mmB:430mm Max opening C:70mm Cutter length |
| Tip crushing force | D:178kN |
|
Central crushing force |
E:282kN |
Search for the other series
