For Various Waste Plastic Cutting Work, also Fishing Net and Blue Tarp
With a large opening range and a sharp blade, GSE series enables smooth cutting work of waste plastic, fishing net and blue tarp. You can choose from 3 types ,hydraulic swivels type (S) , automatic swivel type (AS) and new stype hydraulic/automatic swivel type (AS).
| Class of excavator |
12~14ton【GSE-120】
|
|---|---|
| Other class |
12~14ton 【GSE-120】 20~22ton 【GSE-200】 |
| Maximum working pressure | 31.4MPa |
| Mass |
[S]1100kg [A]1100kg [L]910kg |

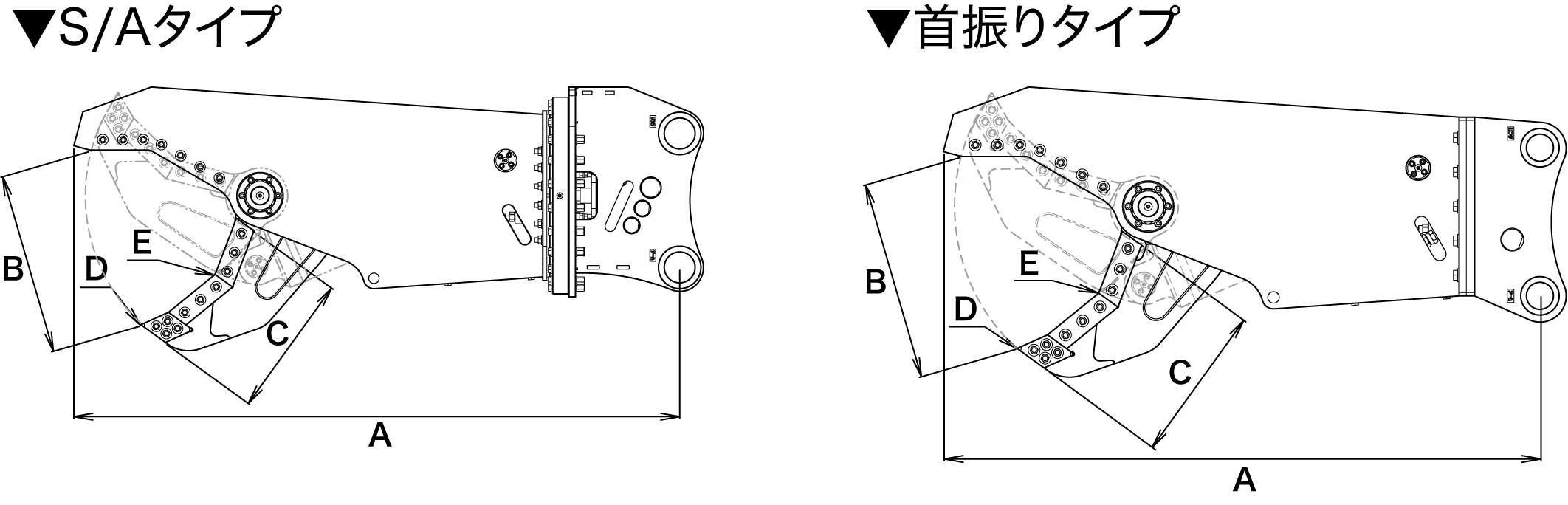

| Size |
A:[S]2030mm [A]2030mm [L]1820mmB:610mm Max opening C:480mm Cutter length |
| Tip cutting force | D:323kN |
|
Central cutting force |
E:641kN |
