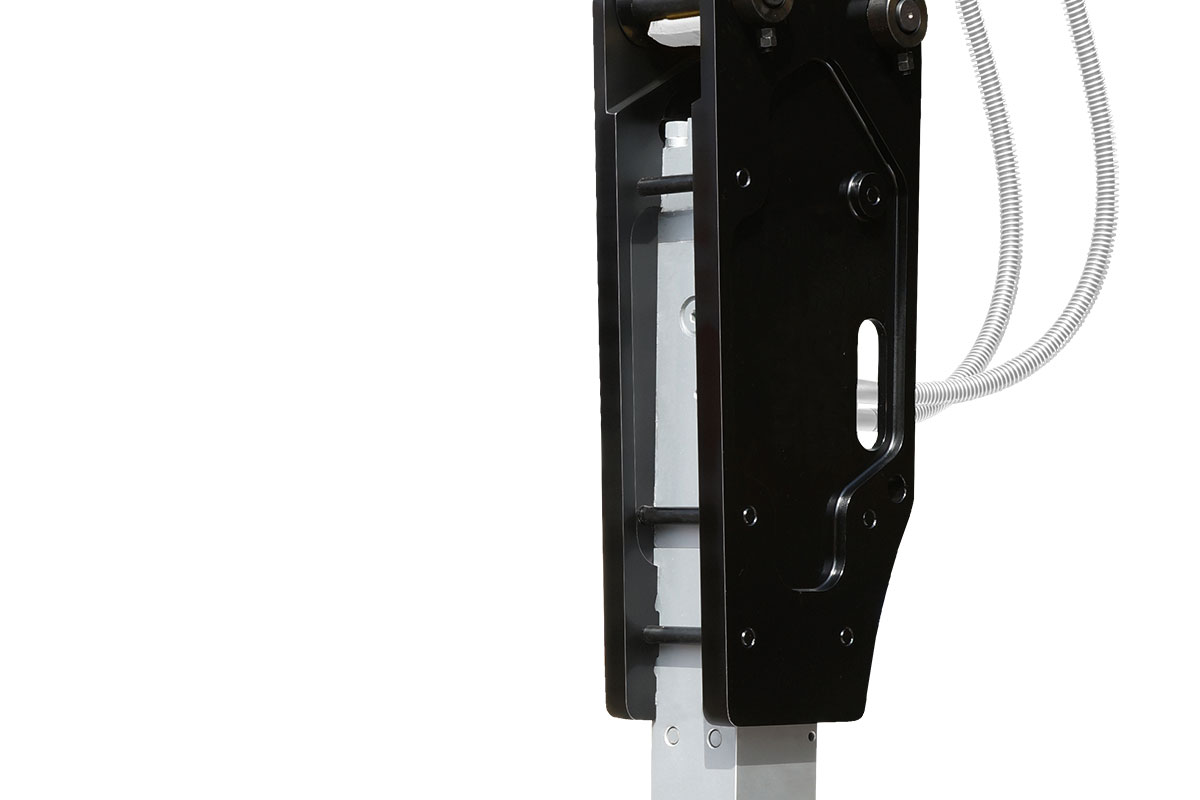

No welded structure at all! New Bracket Adopted

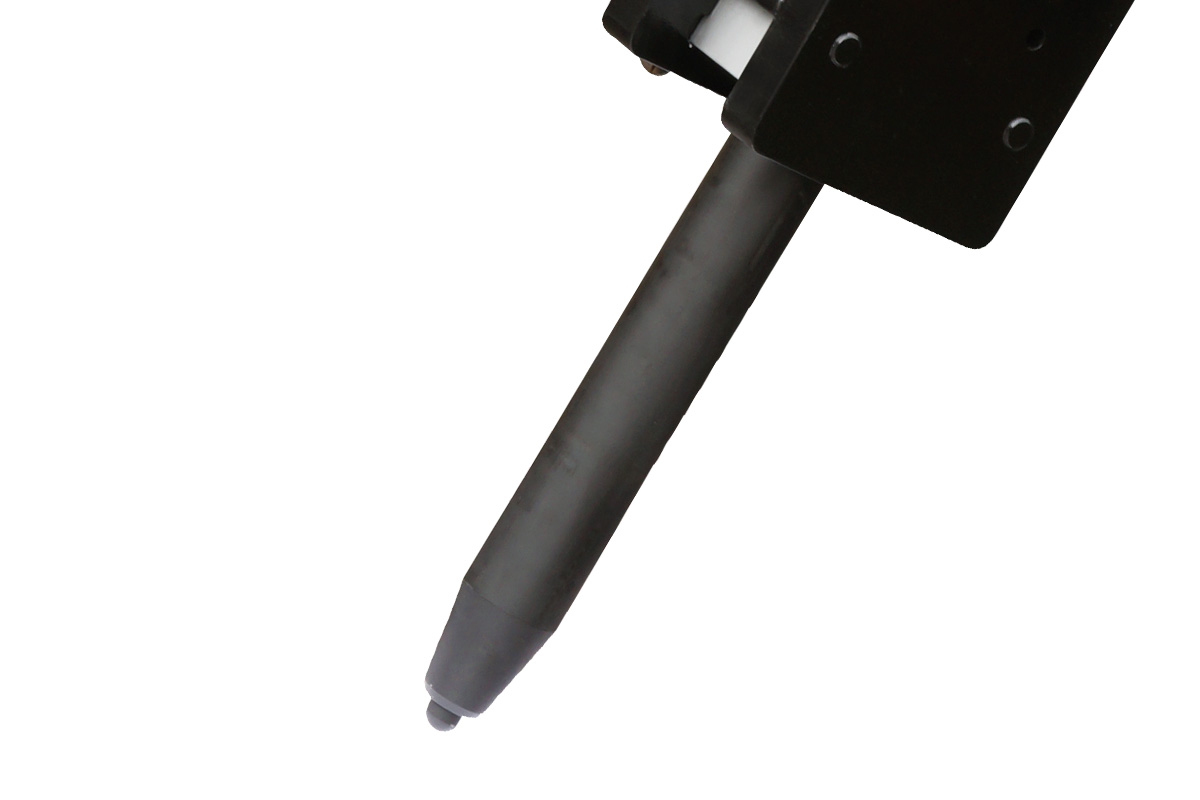

No welding! An unprecedented hydraulic breaker that uses a machined bracket. In addition to the standard type T series, TH series with strengthened bracket is also available. This is a new type of breaker that has a chisel with core as standard, and also has impact resistance and durability.
| Class of excavator |
3~4ton【GB-32B】
|
|---|---|
| Other class |
3~4ton 【GB-32B】 4~5ton 【GB-42】 6~8ton 【GB-62】 |
| Working pressure | 10~15MPa |
| Mass | 200kg |

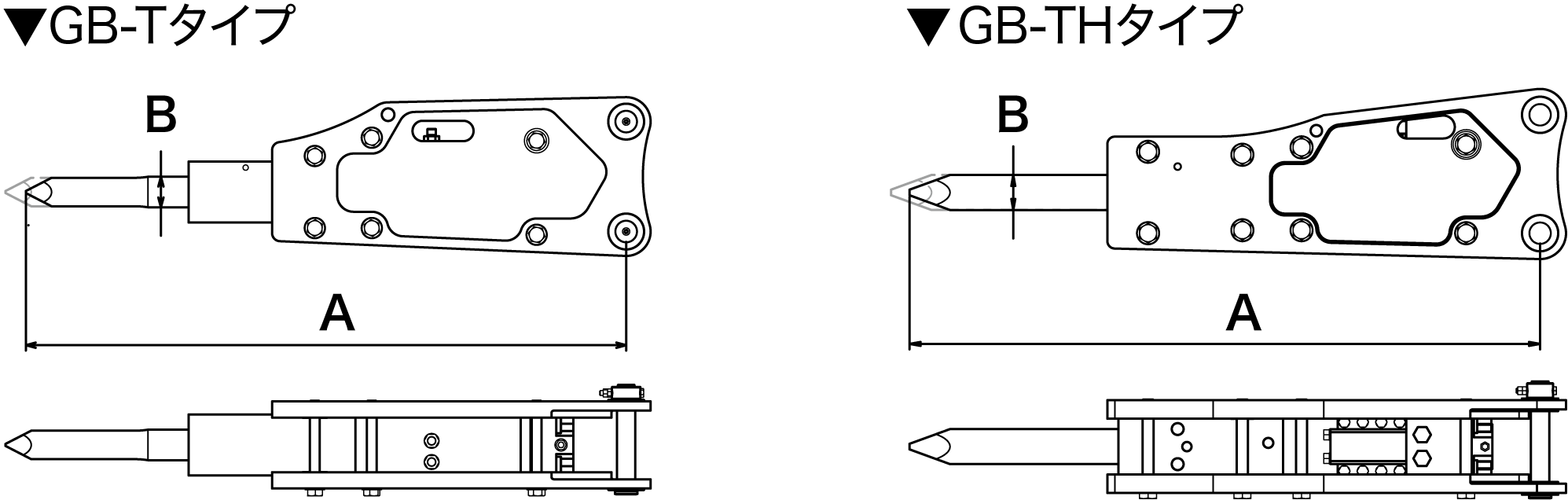

| Size |
A:1280mmB:φ58mm diameter of chisel |
| Hitting number | 550~1000bpm |
| Required flow rate | 25~45L/min |
Search for the other series
