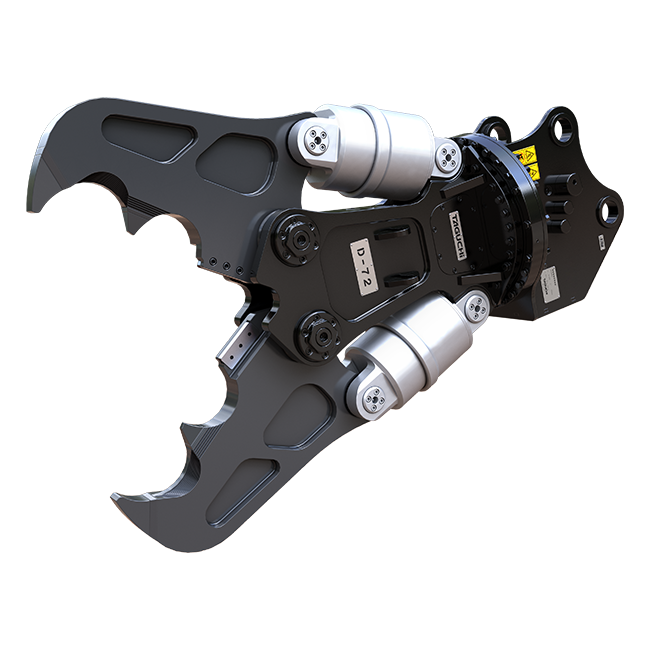

D series Crusher

Twin cylinder primary crusher
D series Crusher

CUTTER&CRUSHER

We realized world's No.1 lightweight! Maintenance cost were substantially reduced.

The machine can cut steel rods that appear during concrete crushing, due to its special steel rod cutter equipped as a standard part. Still rod cutters use highly economic two-way type cutters. There are three types of swivels. It shows its power for primary crushing, such as building or foundation dismantling.

Class of excavator

6~8ton【D-62】


[F]Free swivel     [S]Hydraulic swivel    [A]Automatic swivel

Other class 3~4ton
【D-35B】
4~5ton
【D-42】
6~8ton
【D-62】
6~8ton
【D-71】
12~14ton
【D-122】
12~14ton
【D-131】
20~22ton
【D-212】
30~37ton
【D-352】
40~45ton
【D-412】
40~45ton
【D-452】
45~55ton
【D-482】
45~55ton
【D-492】
100ton
【D-1052】
100ton
【D-1082】
100ton
【D-1092】
Working pressure 24.5MPa
Maximum working pressure 27.4MPa
Mass 740kg
Size A:1690mm
B:630mm Max opening
C:130mm Cutter length
Tip crushing force D:431kN
Central crushing
force
E:676kN
